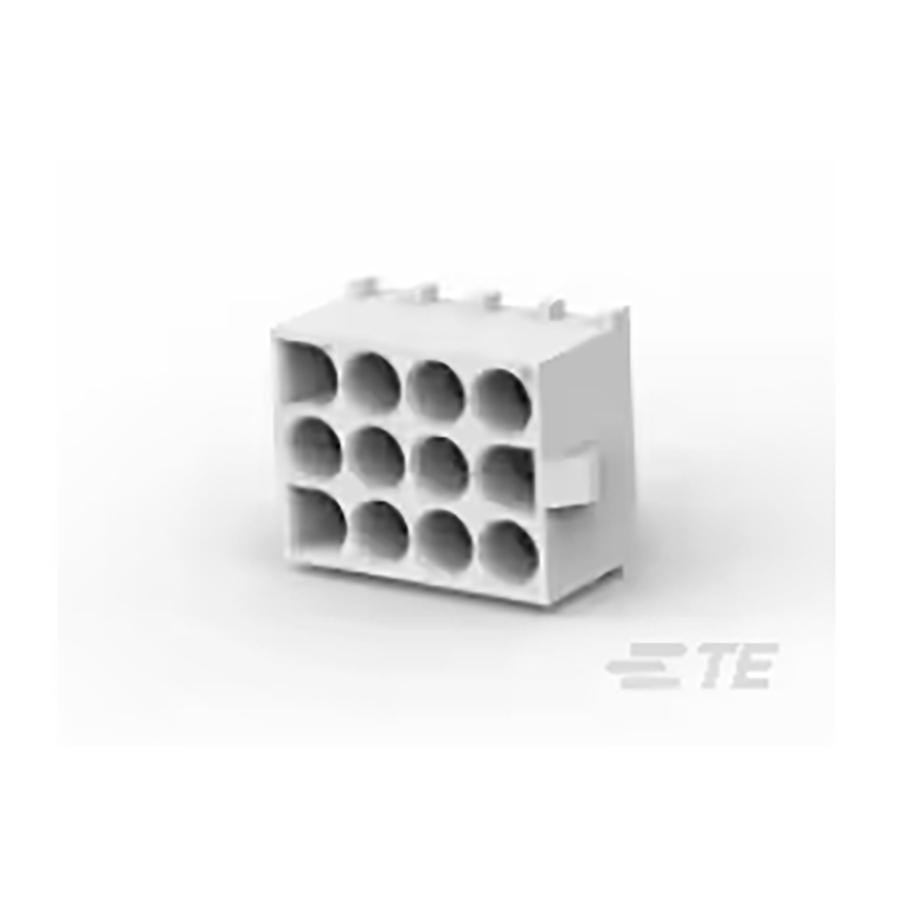

350764-4
Manufacturer:
TE Connectivity
Mfr.Part #:
350764-4
Datasheet:
Description:
IC and Component Sockets Through Hole Socket Number of Positions:12 Number of Rows:3 Pitch:6.35 mm Row Spacing:250 µm
| Parameter | Value |
|---|---|
| Length | 26.67 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 12 |
| Height | 14.73 mm |
| Packaging | Tray |
| Voltage Rating | 600 V |
| Depth | 20.32 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Tin |
| Pitch | 6.35 mm |
| Number of Terminals | 12 |
| Current Rating | 19 A |
| Flammability Rating | UL94V-2 |
| Approvals | CSA |
| Number of Circuits | 12 |
| Orientation | Vertical |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 12 |
| ELV | Compliant |
| Connector Type | Socket |
| Number of Positions | 12 |
| Number of Rows | 3 |
| Row Spacing | 250 µm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 12 A |
| Housing Color | Natural |
| PCB Thickness | 1.57 mm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Female |
| Number of Power Positions | 12 |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Contact Retention | Without |
| Contact Finish - Mating | Tin |
Stock: 2
Distributors
pcbx
pcbxUnit Price$1.34947
Ext.Price$1.34947
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.34947 | $1.34947 |
| 10 | $1.12685 | $11.26850 |
| 25 | $1.03605 | $25.90125 |
| 50 | $0.95257 | $47.62850 |
| 100 | $0.87581 | $87.58100 |
| 300 | $0.84430 | $253.29000 |
| 500 | $0.81393 | $406.96500 |
| 1000 | $0.78522 | $785.22000 |
